HY Serie

HY090.1-03A

PRODUKT-DATENBLATT DRUCKEN
AIR-OIL HEAT EXCHANGERS
IP44
230/400Volt
TECHNISCHE DATEN
ItemOil flowCapacityWeightVoltageFrequencyCurrent absorptionPower Ø FanAir flowNoise levelRpm
 [l/min][l][kg][V][Hz][A][W][mm][m3/h][dB(A)]
HY090.1-03A30-1905,331230/40050/600,53200450182072

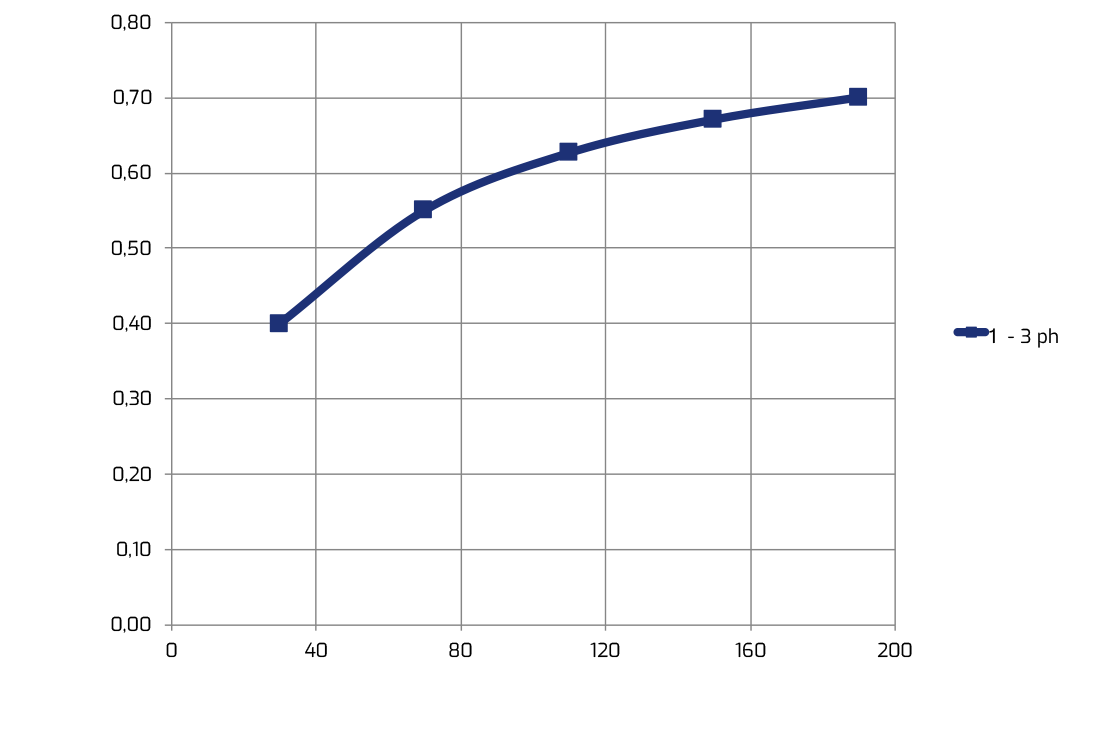

Leistung
https://www.oesse.com/wp-content/uploads/2020/01/HY09003_rendimento.png[kW/K][l/min]

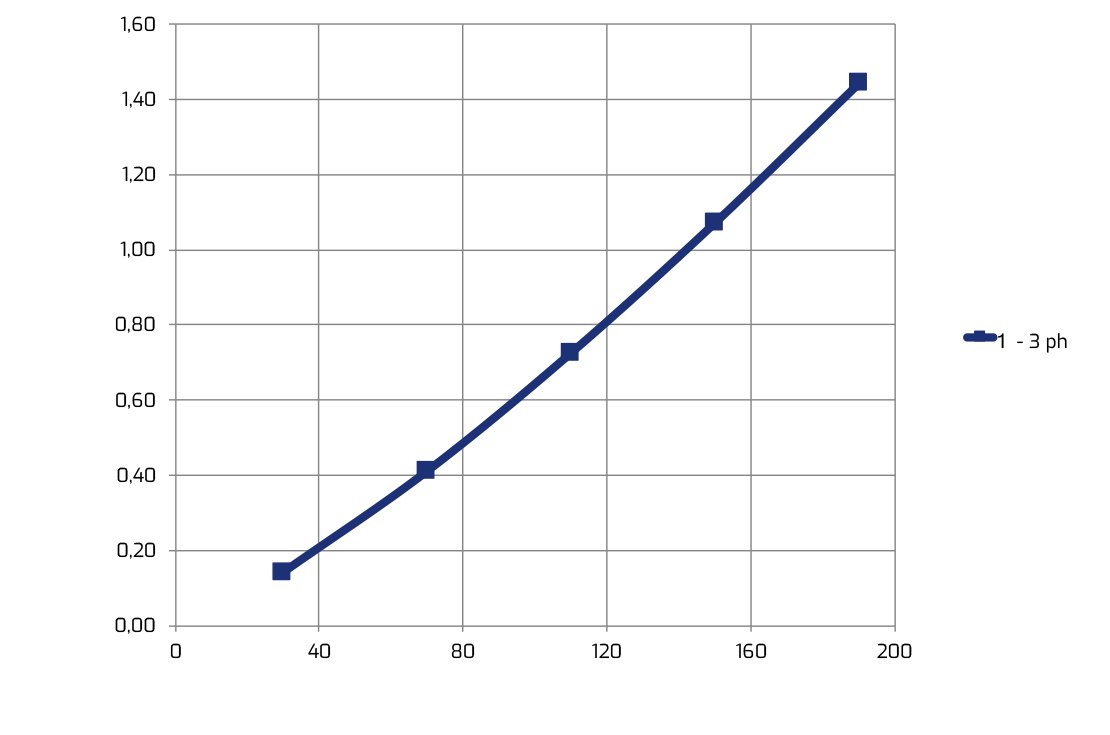

Druckverlust
https://www.oesse.com/wp-content/uploads/2020/01/HY09003_perdita.png[bar][l/min]

Oil T 80°C
T Amb. 40°C
1 kW = 860 Kcal/h – 1 HP = 0,75 kW

ISO VG 32 at 40°C
Viscosity - ISO VG 32 Oil
Oil22324668150
Correction factor0,811,21,63
Technical data are not binding - The graphs show the central range of heat exchange data
Accessories

Mounting systems - from HY090 to HY210

Siehe Produkt

Fixed temperature thermostats with threaded port 3/8"G

Siehe Produkt

Fixed temperature thermostats with threaded port 1/2"G

Siehe Produkt

Adjustable thermostat

Siehe Produkt
